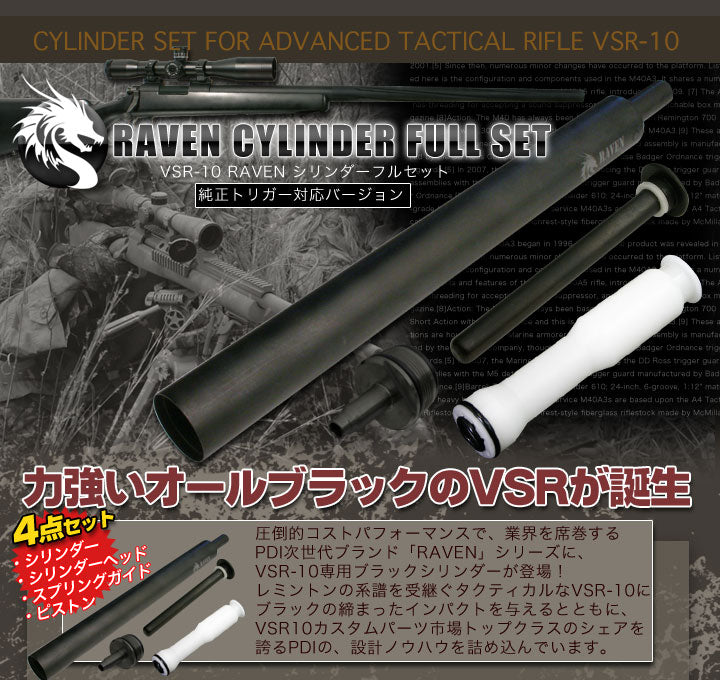

PDI Raven Cylinder Full Set for Marui VSR-10 Original Trigger

Description:

[What is RAVEN?]
PD Brand "RAVEN" PDI has launched a new brand, "RAVEN." With the expansion of its facilities and improved production efficiency, it has succeeded in significantly reducing the price while maintaining genuine MADE IN JAPAN quality!
The black color also exudes a sophisticated
, luxurious feel. "RAVEN" delivers reliable quality at an affordable price.

[RAVEN Cylinder]
"YAG laser welding and two parallel pins" - Made
from durable carbon steel. The cylinder body and cylinder boss are not one piece, but are firmly joined all around using two 4mm parallel pins.
The joint is also laser welded, providing double protection against loosening.

[Spring Guide]
Made from the same carbon steel as the cylinder, this spring guide is durable. The spring
guide is susceptible to stress from the spring's expansion and contraction during cocking, so
a single Delrin thrust ring is attached to the base to reduce the direct load on the guide base.

[Delrin Piston (for OEM Trigger)]
An ultra-lightweight, completely new design for OEM triggers. The head, body, and end are integrated into one piece, designed for compatibility with low-output springs.
The Delrin material achieves lightweight construction.
An air intake is located on the front of the head, and an external O-ring opens and seals when the piston advances.
This reduces resistance when pulling the bolt.
This product requires a large-diameter spring, so we recommend using a PDI VSR spring.
*Power may increase when combined with other parts.
After assembly, be sure to check the muzzle velocity and adjust the output at your own risk.

[Tapered Cylinder Head]
This part effectively converts the air expelled from the cylinder into power with a reliable taper angle.
PDI places the same importance on the inner barrel and chamber, and by tapering the interior to an optimal angle, we have achieved power conversion greater than that of a standard head.
Furthermore, the extended nozzle length optimizes the BB retention position, producing stable output. The
O-ring at the tip of the nozzle improves airtightness within the chamber and reduces air loss.
*This product can be installed on the VSR-10 genuine cylinder, but due to the shallowness of the cylinder's threads, it may not lock securely.
This is due to the change in the cylinder threads depending on the batch, so we cannot currently announce when the batch will be compatible.
Therefore, we do not recommend using it with a genuine cylinder.

*Please use the end cap bolts that meet our specifications.
Marui genuine bolts are made to original specifications, so they have a smaller diameter than standard bolts. If used with a PDI cylinder, the threads may not fit. The VSR-10 compatible cap bolt standard is "M4 x 12mm." The
cap bolt.

Compatible models:Tokyo Marui VSR-10 (Pro Sniper, G-Spec, Real Shock Ver.)

Precautions:*This product is for use with the original trigger. For PDIν triggers, please see here.
*This product uses a thick spring.
*As the VSR-10 uses a special trigger system, cocking may be difficult after installation.

SKU: R6557
