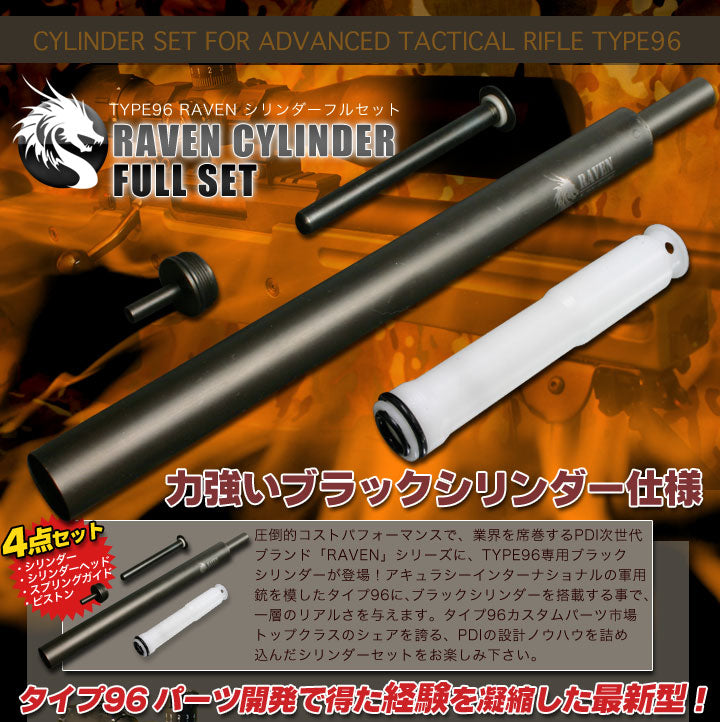

PDI Raven Cylinder Full Set for Maruzen Type 96(Original Trigger)

Description:

[RAVEN Cylinder]
"YAG laser welding and four parallel pins"
are used to make the cylinder. The cylinder body and cylinder boss are not one piece, but are firmly connected all around using four φ3mm parallel pins.
The joint is also laser welded, providing double protection against loosening.

[Spring Guide]
The spring guide is made of the same carbon steel as the cylinder, making it extremely durable. Since the
spring guide is susceptible to stress from the expansion and contraction of the spring during cocking, a Delrin thrust ring is attached to the base to reduce the load directly on the guide base.

[Delrin Piston]
A completely new, newly designed piston. Compatible with both the OEM trigger and the PDI Nutriggers.
Designed to be compatible with low-output springs, the Delrin material reduces weight.
An intake port is located on the front of the head, and an external O-ring opens and seals when the piston advances. This reduces resistance when pulling the bolt.
This product requires a large-diameter spring, so we recommend using a PDI spring.

*Power may increase when combined with other parts. After assembly, be sure to check the muzzle velocity and adjust the output at your own risk.

[Tapered Cylinder Head]
"Effective air ejection with a reliable taper angle"
This part determines how efficiently the air pushed out of the cylinder can be converted into power.
PDI places the same importance on this as the inner barrel and chamber, and by tapering the interior to an optimal angle, we have achieved power conversion greater than that of a standard-shaped head.

SKU: RAVEN-648174
